Customized silicone keypad for automobile swithches

Yuanyi is a custom silicone keypad manufacturer specializing in automotive switches and has passed IATF 16949. Our engineering team can design your custom automotive silicone rubber keypads based on your specific requirements, tailored to your desired curves and operating feel.

Silicone keypads, also known as conductive rubberor silicone interior pad, are suitable for a variety of electrical switches in commercial and passenger vehicles, including power window switches, steering wheel switches, push-button start switches, seat adjustment switches, alarm switches, tailgate openers, heating switches, headlight switches, and more.

Silicone rubber keypads are operated by pressing, using both static and moving contacts. They are a key component in automotive electrical switches, enabling the on/off function of the entire vehicle and playing a vital role in driving safety, convenience, and comfort. Silicone buttons are a common material for automotive electrical switches due to their comfortable operating feel and performance.

Silicone keypads with or without tactile feedback?

We listen to your needs and customize silicone keypads with or without tactile feedback solutions:

Defined sound

Noiseless

Soft

Solid

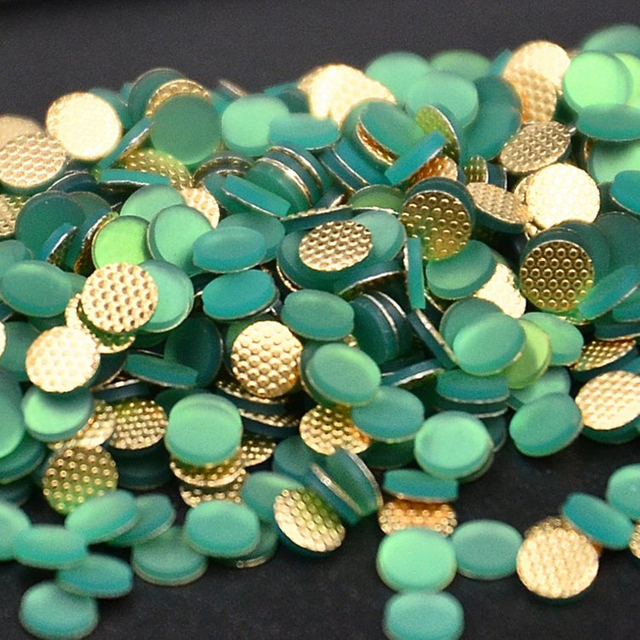

What types of conductive pills are commonly used in silicone keypads?

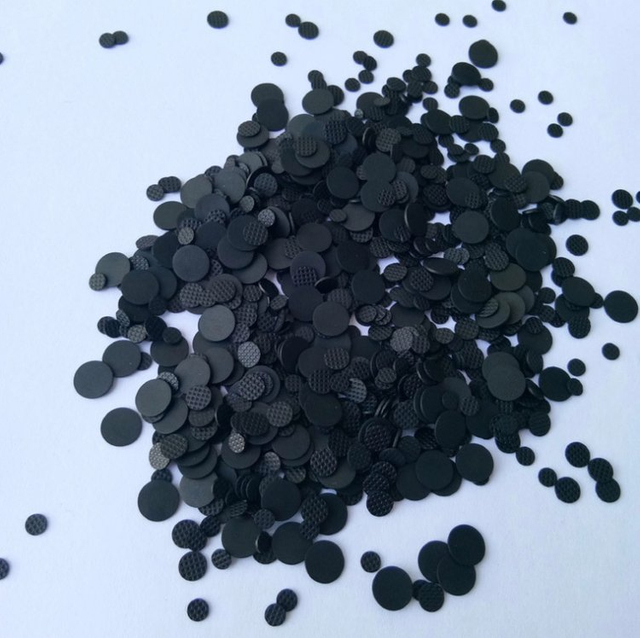

Carbon pills

Contact resistance less than 20 ohms, contact current > 100mA

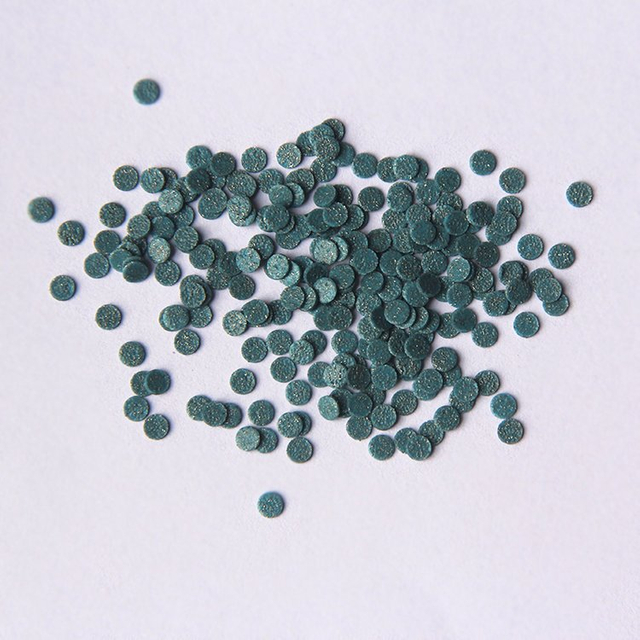

Nickel pills

Contact resistance less than 1 ohm, contact current >300mA

Gold pills

Contact resistance less than 1 ohm,contact current > 1A

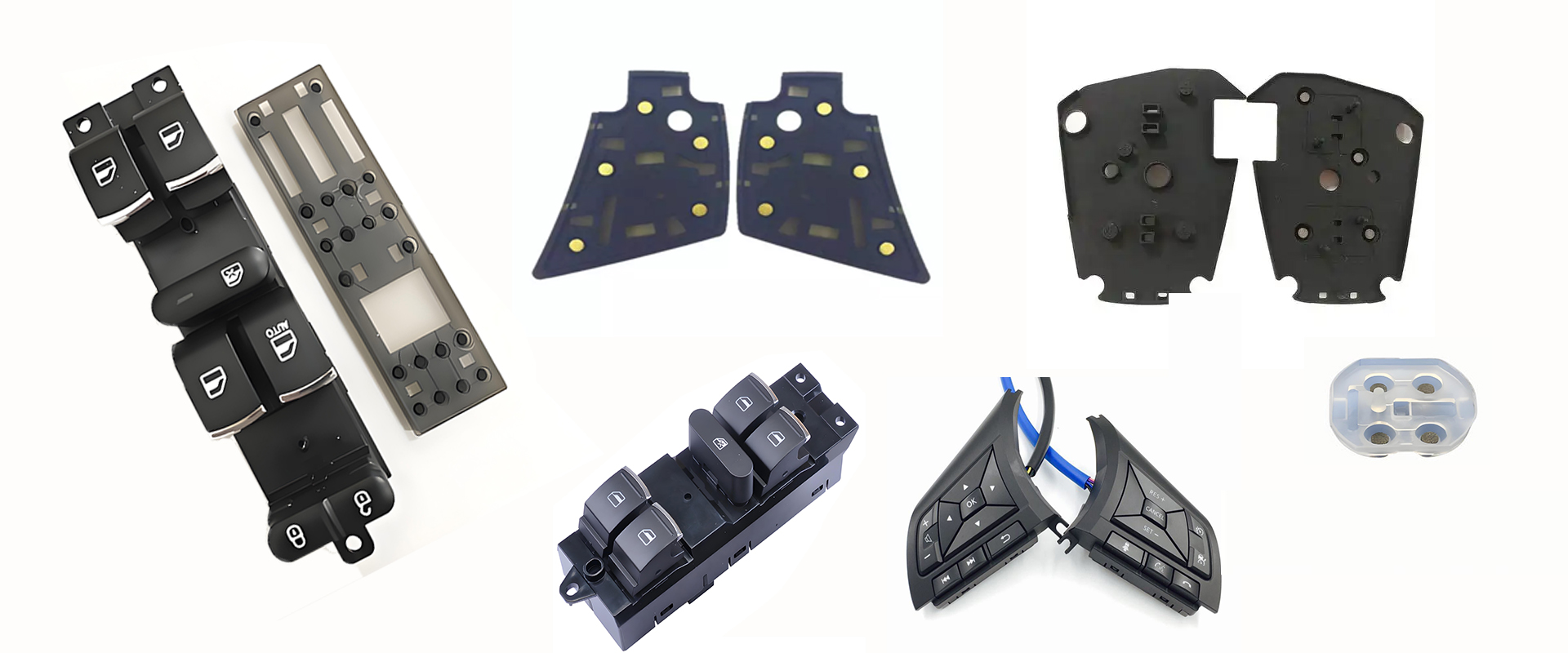

What are the applications of silicone keypad buttons in automotive?

Silicone keypads have a wide range of applications, primarily in low-current controlled window regulator switches, steering wheels, rearview mirror switch panel assemblies, and various control panel switches throughout the vehicle.

Front four door power lift switch assembly

Left and right front and rear door window switch assembly

Automotive Window Switch

Power window auxiliary switch

Driver's side window lifter

Rearview mirror control switch assembly

Sunroof switch

Heating switch

Function steering wheel switches

Dimmer switch

Fog light switch

Trunk switch

Central door lock switch

Rearlight switch

Heated seat switch

Hazard warning light switch

Conductive Rubber Keypads Features

Conductive rubber keypad is molded from silicone rubber and conductive pills at high temperatures, resulting in excellent resistance to both high and low temperatures. It also offers a comfortable feel, excellent electrical insulation, a long lifespan, durability, and dust and water resistance.

What are the customizable parameters for silicone keypads?

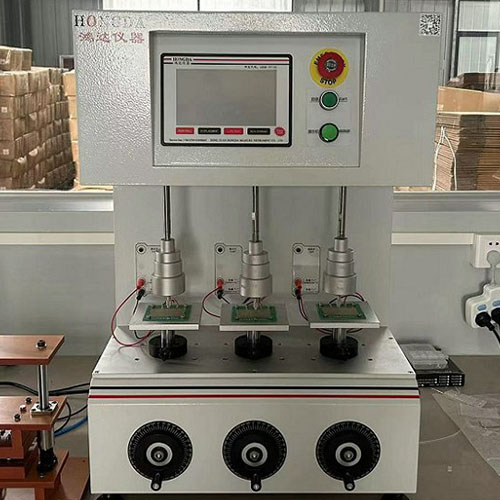

ForService Lifespan
The lifespan is generally 50,000-100,000 cycles. Using high-rebound materials, the lifespan can reach 200,000 cycles.

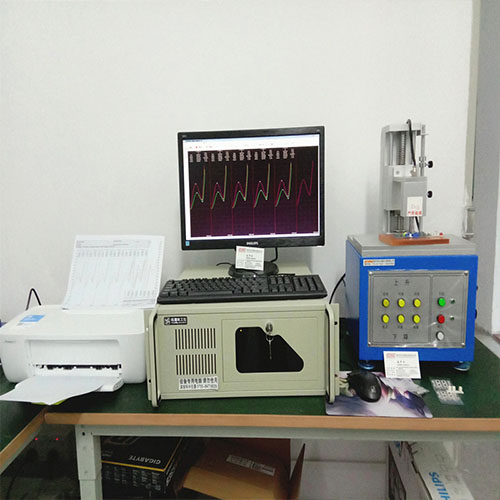

Load
The load range is generally 100g (1N) to 400g (4N). One product can meet various load requirements.

Stroke travel
The stroke is typically 1.0mm-2.0mm. For special design, it can reach up to 2.7mm.

Key Bottom/Top Contact Area Diameter
The bottom diameter of a button typically ranges from 4.5mm to 6.5mm. A larger diameter allows for greater design flexibility.

The top contact area of a button is generally 3.5-4.5mm. The larger the contact area of the button surface,the lower the applied pressure.

Conductive Pills
We offer carbon, nickel, gold, and other materials, depending on the customer's performance requirements. Conductive particle diameters can be 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, or 5.0mm.

Material
Keypads have specific performance requirements for the materials used, generally requiring good resilience. Specific brands, such as Shin-Etsu and Dow Corning, can also be specified.

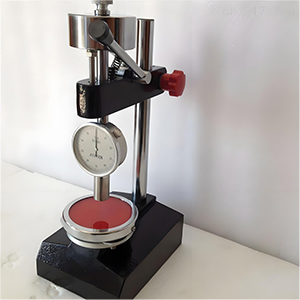

Hardness
Silicone typically has a hardness of 55-60 Shore A. Steering wheels sometimes use 65 Shore A material.

Resistance
Carbon pills have a minimum contact resistance of 10 ohms. Nickel and gold pills have a contact resistance of less than 1 ohm. Different types of conductive pills can be selected to meet the resistance requirements of different switches.
